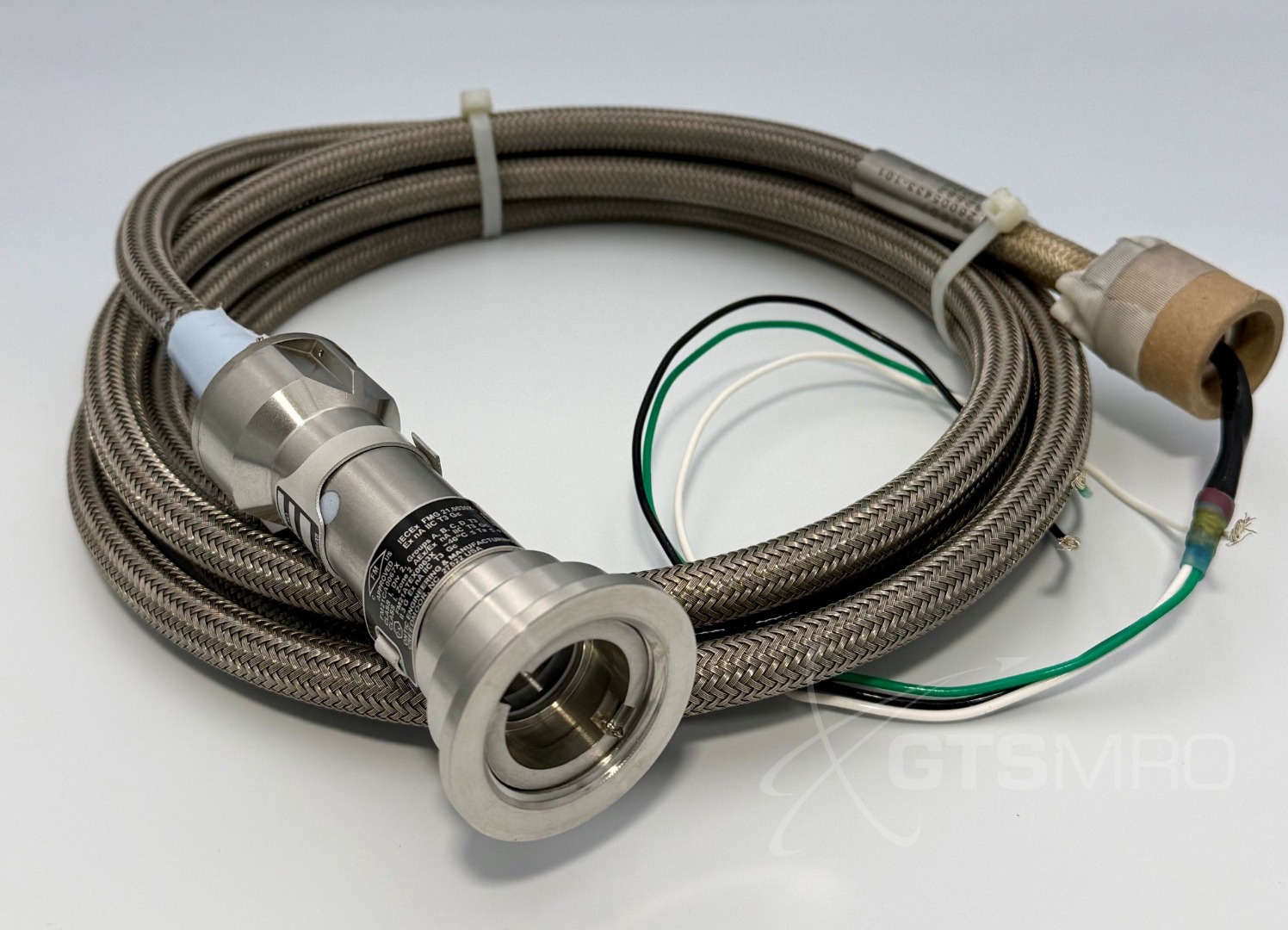

Honeywell / Ontic UV Flame Sensors
Description
Industrial power generation gas turbine installations demand the superior protection provided by the Honeywell / Ontic UV Flame Monitoring System. The flame monitor system detects the ultraviolet radiation emitted by a hydrocarbon flame and produces an output signal to indicate a flame or no-f lame condition. This system has delivered proven performance on General Electric (and GE licensee) gas turbines for more than 35 years. Land-based and off-shore applications include power generation, pumping stations, ship board power generation among other industrial uses. A variety of sensor types, amplifier types and sensor cable lengths are available.
Features
- High sensitivity with fast response time (0.1 sec typical)
- Operating distances up to 1000 feet, sensor to amplifier
- Available with Factory Mutual approval for explosive atmospheres
- Available with European Directive CE mark for EMC 89/336EEC, LVD 73/23/EEC and ATEX Explosive Atmosphere 94/9/EC
- Qualified component on General Electric gas turbines.
Proven Design
- Geiger Mueller-type sensor phototube. Detects ultra-violet band at 1800 - 2600 angstroms. “Solar blind” and tolerant to black body radiation.
- Two-year shelf-life, 10,000 hours. MTBF with over one billion operating hours.
| PART NUMBER |
DESCRIPTION |
| LG1093AA24 |
SENSOR, FLAME (UV) 16 FT CABLE, CE COMPLIANT |
| LG1093AA25 |
SENSOR, FLAME (UV) |
| LG1093AA26 |
SENSOR, FLAME (UV) 61 FT CABLE, CE COMPLIANT |
| LG1093AA34 |
SENSOR, FLAME (UV) |
| LG1093AA35 |
SENSOR, FLAME (UV) |
| LG1093AA36 |
SENSOR, FLAME (UV) 61 FT CABLE, CENELEC IIA COMPLIANT |
| LG1093AA44 |
SENSOR, FLAME (UV) 16 FT CABLE, CENELAC IIC COMPLIANT, ATEX CERTIFIED |
| LG1093AA45 |
SENSOR, FLAME (UV) 42 FT CABLE, CENELAC IIC COMPLIANT, ATEX CERTIFIED |
| LG1093AA46 |
SENSOR, FLAME (UV) 61 FT CABLE, CENELEC IIC COMPLIANT |
| LG1093AB01 |
SENSOR, FLAME (UV) |
| LG1093AC01 |
SENSOR, FLAME (UV), AERODERIVATIVE, 9 FT |
| LG1093AC02 |
SENSOR, FLAME (UV), AERODERIVATIVE |
| LG1093AC05 |
SENSOR, FLAME (UV), AERODERIVATIVE, 24 FT |
| LG1093AA01 |
SENSOR, FLAME (UV) |
| LG1093AA04 |
SENSOR, FLAME (UV) |
| LG1093AA05 |
SENSOR, FLAME (UV) |
| LG1093AA06 |
SENSOR, FLAME (UV) |
| EG1033AA01 |
AMPLIFIER, FLAME (UV) |
| EG1033AB01 |
AMPLIFIER, FLAME (UV) |
| EG1033AB02 |
AMPLIFIER, FLAME (UV) |
| EG1033AC01 |
AMPLIFIER, FLAME (UV) |
| EG1033AD01 |
AMPLIFIER, FLAME (UV) |
| 277A2189P02 |
AMPLIFIER, FLAME (UV) |
| 277A2189P002 |
AMPLIFIER, FLAME (UV) |
| 277A2189P08 |
AMPLIFIER, FLAME (UV) |
| 277A2189P008 |
AMPLIFIER, FLAME (UV) |
| 261A1812P012 |
SENSOR, FLAME (UV) 16 FT CABLE, CE COMPLIANT |
| 261A1812P013 |
SENSOR, FLAME (UV) 61 FT CABLE, CE COMPLIANT |
| 261A1812P014 |
SENSOR, FLAME (UV) 61 FT CABLE, CENELEC IIA COMPLIANT |
| 261A1812P015 |
SENSOR, FLAME (UV) 61 FT CABLE, CENELEC IIC COMPLIANT |
| 314A5030P001 |
SENSOR, FLAME (UV), AERODERIVATIVE, 9 FT |
| L28490P02 |
SENSOR, FLAME (UV), AERODERIVATIVE |
| L28490P05 |
SENSOR, FLAME (UV), AERODERIVATIVE, 24 FT |
GE LM2500, LM5000, LM6000
GE FRAME 1, 3, 5, 6, 7 and 9
Contact us for any requirements.
